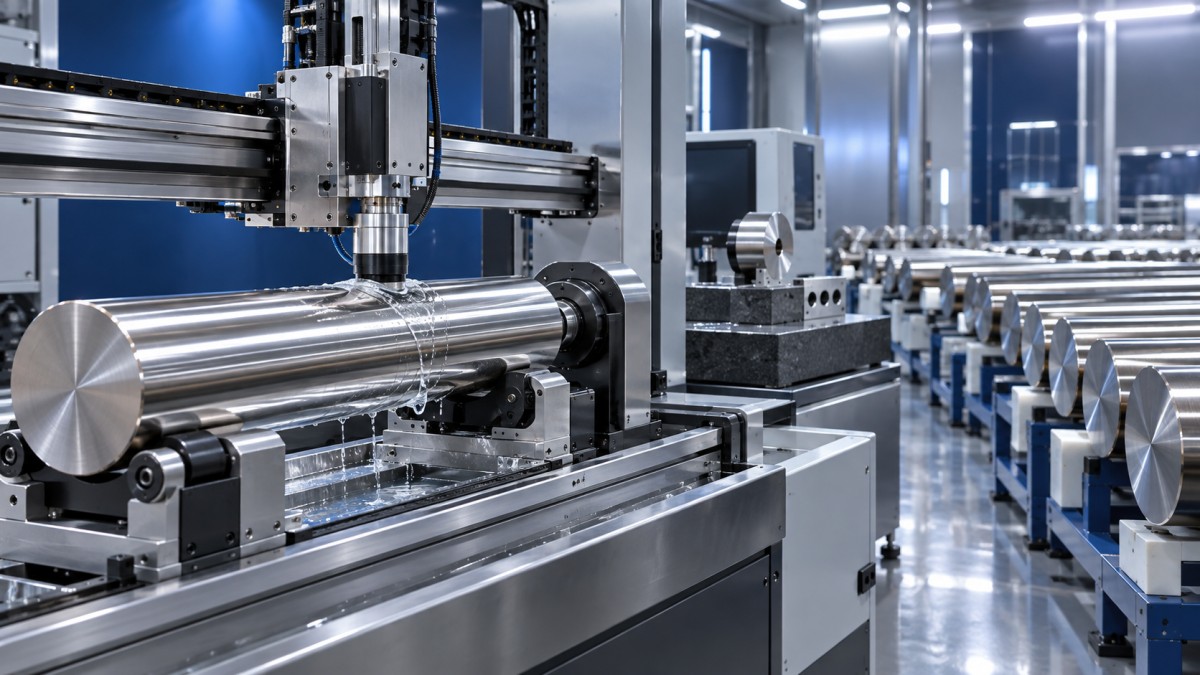

Which ultrasonic inspection standard applies to critical alloy bar

There is no single ultrasonic inspection standard that automatically applies to every critical Alloy Bar. The governing requirement should come first from the material specification, drawing, customer purchase order, or applicable code. The ultrasonic standard then defines how the examination is performed, while the material or procurement document defines what is acceptable.

For quality and safety managers, the practical question is not simply “which UT standard is available?” It is whether the selected standard matches the bar’s product form, alloy family, intended machining route, and consequence of an internal discontinuity. A nickel-based bar intended for a turbine fastener, for example, should not be specified in the same way as a corrosion-resistant bar used for a non-pressure mechanical component.

Start with the governing product specification

Critical bars are commonly supplied under a material standard, aerospace material specification, customer specification, or project-specific purchase requirement. These documents may already state the required ultrasonic method, inspection class, scan coverage, and acceptance criteria. Where they do, a general UT practice cannot replace them.

This distinction matters because many alloy material specifications define chemistry, mechanical properties, heat treatment, dimensions, and surface condition, but may not prescribe a complete ultrasonic acceptance system for every size and application. A purchase order that merely states “UT tested” leaves too much room for interpretation. It does not identify the scanning method, sensitivity, reference standard, reportable indication size, or rejection threshold.

For a critical Alloy Bar, the inspection requirement should identify at least:

• Product form: rolled bar, billet, upset bar, or forging.
• Alloy grade, heat-treatment condition, and diameter range.
• Inspection direction and coverage, including axial and transverse scanning where required.
• Applicable UT practice or method standard.
• Acceptance class or numerical acceptance limits.
• Reference reflector type and calibration method.
• Reporting, traceability, and retest requirements.

Common standards and where they fit

For steel bars manufactured to European requirements, EN 10308 is often relevant. It addresses ultrasonic testing of steel bars and provides a framework for testing practice and quality classes. It is most useful when the delivered product is clearly a bar and the contractual requirement is based on European steel-bar standards.

When the supplied item is a forging rather than mill-produced bar, EN 10228-3 is more likely to be the appropriate European reference. It covers ultrasonic testing of steel forgings. The manufacturing route matters: a bar that has been heavily upset, pierced, or forged into a near-net preform may no longer be adequately controlled by a bar-testing requirement alone.

In North American specifications, ASTM A388/A388M is widely used for ultrasonic examination of steel forgings. It is a recognized practice for locating internal discontinuities in forgings, but it should not be treated as a universal standard for all high-alloy or nickel-based bar. Its use needs to be technically appropriate for the alloy’s ultrasonic response and the supplied product form.

ASTM E2375 provides a general practice for ultrasonic examination of wrought products. It can support development of an examination procedure where a product standard refers to a general UT practice or where the purchaser must define a tailored inspection plan. ASTM E114 is another general pulse-echo ultrasonic examination practice that may be referenced for method control. Neither document, by itself, tells a supplier what discontinuity size is acceptable for a particular safety-critical application.

Aerospace and other high-consequence applications frequently rely on material-specific requirements and aerospace ultrasonic inspection specifications, including AMS 2154 where contractually invoked. These requirements are often more prescriptive about inspection classes, calibration reflectors, coverage, and allowable indications. The exact revision, inspection class, and supplemental customer clauses should be stated in the procurement package rather than assumed from a material name such as Inconel, Waspaloy, or Hastelloy.

Why alloy family changes the inspection decision

Ultrasonic inspection is affected by grain structure, attenuation, surface condition, bar diameter, and the degree of working through the section. These variables can be especially important in nickel-based and high-temperature alloys. Coarse grain structure or non-uniform microstructure can reduce signal clarity, making a procedure developed for carbon or low-alloy steel unsuitable without validation.

For this reason, the inspection standard should be paired with a qualified procedure for the actual alloy and condition. A technically credible procedure sets the probe frequency, coupling method, scanning speed, calibration approach, dead zone treatment, and evaluation method based on achievable sensitivity. Specifying an unrealistically small rejectable indication without considering material attenuation can create disputes without improving safety.

The same consideration applies when bars will be machined into components exposed to high temperature, pressure, or corrosive media. Material used upstream of High-Temperature Alloy Tubes, turbine parts, combustion hardware, heat-exchanger components, or chemical-process equipment may require tighter internal quality controls because a buried discontinuity can become more significant after machining or thermal cycling.

Acceptance criteria matter more than the word “ultrasonic”

A UT certificate can confirm that an examination was performed, but it does not automatically confirm suitability for critical service. The certificate should be reviewed alongside the stated acceptance criteria. Managers should check whether the result is expressed as a quality class, a reference reflector comparison, an amplitude threshold, a maximum permissible discontinuity size, or a defined rejectable indication.

Acceptance requirements should also distinguish between isolated reflectors and clustered indications. A single small reflector may have a different significance from multiple indications concentrated in a highly stressed zone. If the bar will be cut into several parts, the required reporting format should show the location of any relevant indications so that affected sections can be removed or dispositioned before machining.

Frequent specification errors

The most common error is applying a forging UT standard to all bar stock without confirming that the production route and alloy support that approach. The opposite error is accepting a general bar certificate after substantial forging or thermal processing has changed the material condition.

Another weak requirement is “100% ultrasonic tested” with no qualification of coverage. Full-length axial scanning may miss discontinuities that are better detected from another direction. End zones, couplant loss, handling marks, and diameter transitions can all reduce effective coverage. A complete requirement defines the regions examined and how untestable zones are handled.

It is also risky to accept an inspection report that gives only “pass” or “accepted.” For safety-relevant applications, the report should identify the governing standard, procedure revision, equipment calibration, material identification, inspection extent, acceptance level, and result. This documentation is needed to show that the examination addressed the ordered condition rather than an unspecified internal standard.

A practical selection rule

Use the material or end-user specification as the first authority. Select a bar standard such as EN 10308 when the product is supplied as steel bar under an applicable European framework. Use a forging-oriented requirement such as EN 10228-3 or ASTM A388/A388M when the delivered form and contract basis are genuinely forgings. For aerospace-grade nickel, cobalt, or high-temperature alloy bars, follow the applicable AMS material specification and any invoked ultrasonic inspection requirement, including the specified class and revision.

Where no mandatory document exists, the purchaser should issue a written UT requirement developed around service consequence and manufacturability. It should be reviewed by the material producer, inspection authority, and component designer before production begins. That step prevents the familiar outcome in which a bar meets a generic ultrasonic statement but fails the more demanding quality expectation of the finished critical component.
